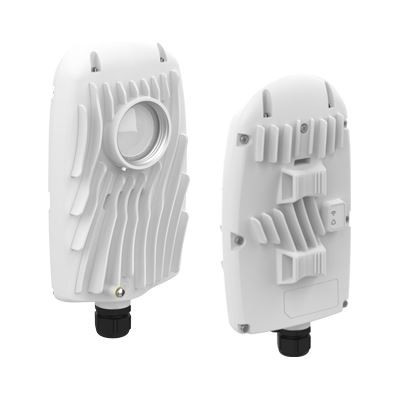

B5X

Performance
Max Throughput:
Up to 1.5 Gbps IP aggregate UL/DL (1.7 Gbps PHY)

      • Low Latency: <1 ms in auto mode

Wireless Protocols:
Fixed TDMA and TDMA-FD (Frequency Diversity) with 75:25,

67:33, or 50:50 traffic ratios with 2, 4, or 8 ms timeslots; Auto-TDMA

Radio
MIMO & Modulation: 4×4:4 MIMO OFDM up to 256QAM
Bandwidth: Single or dual 20/40/80 MHz channels; Regulations vary by region
Frequency Range: 90–6.40 GHz; Restricted by country of operation
Max Output Power:
30 dBm (1x mode, i.e. single freq)

27 dBm (2x mode, i.e. dual freq)

Sensitivity (MCS 0):
     -87 dBm @ 80 MHz

-90 dBm @ 40 MHz

-93 dBm @ 20 MHz

Integrated Antenna Gain: 8 dBi (with no optional antenna accessory attached)
Additional Flexible Antenna Options (not included): N5-X compatible twist on antennas—
12 dBi horn; 16 dBi horn; 20 dBi dish; 25 dBi dish

Power
Max Power Consumption: 20 W
System Power Method:
48 VDC 802.3at (PoE+) active or passive  compliant power injectors

System Lightning & ESD Protection: 6 kV
Recommended Power Supply (not included):
50 VDC passive Gigabit PoE injector

Physical
Dimensions:
Height: 241 mm (9.5”)

Width: 139 mm (5.5”)

Depth: 76 mm (3.0”)

Compatible with FlexiMount XL

Environmental
Outdoor Ingress Protection Rating: IP67
Operating Temperature: -40°C to +55°C (-40°F to 131°F)
Operating Humidity: 5 to 100% condensing
Operating Altitude: 4,420 m (14,500’) maximum
Shock and Vibration: ETS 300-019-2-4 class 4M5
Features
Gigabit Ethernet: 10/100/1000-BASE-T
Dual Link Operation:
2 independent dual-stream radios operating on  non-contiguous frequencies; Automatic load balancing of traffic across 4 total MIMO streams with individual stream encoding up to 256 QAM
