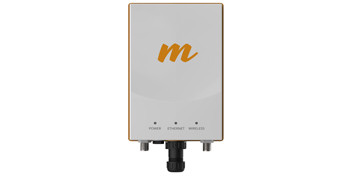

B5c

•Max Throughput:Up to 1.5 Gbps IP aggregate UL/DL (1.7 Gbps PHY)
•Low Latency:<1 ms in Auto Mode
•Wireless Protocols: TDMA, TDMA-FDRadio
•MIMO & Modulation:4×4:4 MIMO OFDM up to 256QAM
•Bandwidth*:Single or Dual 20/40/80 MHz channels
•Frequency Range:4900 – 6200 MHz restricted by country of operation (‘new’ US/FCC 5600-5650 support)
•Max Output Power: 30 dBm (2-stream) 27 dBm (4-stream)
•Sensitivity ( MCS 0 ):-87 dBm @ 80 MHz -90 dBm @ 40 MHz-93 dBm @ 20 MHzPower
•Max Power Consumption: 20W
•System Power Method:48 V DC 802.3 at compliant power injectors
•System Lightning & ESD Protection: 6 kV
•PoE Power Supply:Passive POE compliant, 48-56 V Power over Ethernet supply with IEC61000-4-5 surge protectionPhysical
•Dimensions:Height – 267 mm (10.5”) Width – 158 mm (6.2”) Depth – 74 mm (3”)
•Weight: 1.6 kg (3.5 lbs)
•Enclosure Characteristics: Outdoor UV stabilized plastic Aluminum mounting panel
•Wind Survivability: 200 km/h (125 mph)
•Wind Loading:9.89 kg @ 160 km/h (21.8 lbs @ 100 mph)
•Mounting:Dual standard pole straps for 30 mm (1.18”) to 90 mm(3.54”) OD pipes
•Connector Type:Female Type N (x2), intended for use with dual polarization antenna

•Outdoor Ingress Protection Rating: IP67
•Operating Temperature: -40°C to +55°C (-40°F to 131°F)
•Operating Humidity: 5 to 100% condensing
•Operating Altitude: 4,420 m (14,500’) maximum
•Shock & Vibration:ETS 300-019-2-4 class 4M5Features
•Gigabit Ethernet: 10/100/1000-BASE-T
•Dual Link Operation:2 independent dual-stream radios operating on non-contiguous frequencies; Automatic load balancing of traffic across 4 total MIMO streams with individual stream encoding up to 256 QAM
•Management Services:Mimosa cloud monitoring and management; SNMPv2 & Syslog legacy monitoring; HTTPS; HTML 5 based Web UI;
2.4 GHz 802.11b/g/n radio for local management access
•Smart Antenna Alignment:Hands-free dedicated 2.4 GHz Wi-Fi management radio alignment tool
•Smart Spectrum Management:Active scan monitors/logs ongoing RF interference across channels (no service impact); Dynamic auto-optimization of channel and bandwidth use
•Security:128-bit AES PSK with hardware acceleration
•QoS:Supports 4 pre-configured QoS levels
•GPS Location:GNSS-1 (GPS + GLONASS)
•Collocation Synchronization:1PPS GPS TX/RX synchronization for collocated co-channel radiosAdjustable up/downstream bandwidth ratioRegulatory + Compliance
•Approvals:FCC Part 15.407 and Part 90Y, IC RSS210 and RSS111, CE, ETSI 301 893/302 502
•RoHS Compliance: Yes
•Safety:UL/EC/EN/ 60950-1 + CSA-22.2
