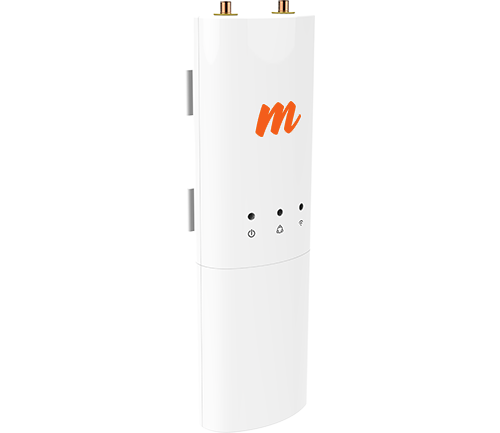

C5C

• Performance

Max Throughput :   PTMP: 500+ Mbps IP (866 Mbps PHY)  , PTP: 700+ Mbps IP (866 Mbps PHY)

Wireless Protocols :  WiFi Interop  ,  Mimosa SRS

Modes  :  PTMP Client  ,PTP Backhaul

• Radio

MIMO & Modulation  :  2×2:2 MIMO OFDM up to 256 QAM
Bandwidth*  :  20/40/80 MHz channels tunable to 5 MHz increments for Mimosa SRS;

                        Tunable to standard WiFi channels for WiFi Interop
Frequency Range  :   PTMP: 4900-6400 MHz***
                                  PTP: 4900-6400 MHz
                                  Restricted by country of operation
                                 *new* US/FCC 5600-5650 MHz support
                                  FCC DFS (U-NII-2a, U-NII-2c) availability pending certification
Max Output Power   :    27 dBm
Sensitivity ( MCS 0 ) :   -87 dBm @ 80 MHz
                                    -90 dBm @ 40 MHz
                                    -93 dBm @ 20 MHz

• Power

Max Power Consumption  :  9.2 W
System Power Method  :  Passive PoE (24-56 VDC)
PoE Power Supply  :  Passive POE compliant, 48-56 V Power over Ethernet supply (Included)

• Physical

Dimensions  :  Depth 44 mm (1.73″)
                       Width 65 mm (2.56″)
                       Height 188.4 mm (7.42″)
Weight  :  295 grams (10.4 oz)
Mounting  :  Single pole strap
Connector Type  :  RP-SMA (x2)

• Environmental

Outdoor Ingress Protection Rating  :  IP55
Operating Temperature  :  -40°C to +55°C (-40°F to 131°F)
Operating Humidity  :  5 to 100% condensing
Operating Altitude  :  4420 m (14501′) maximum
Shock & Vibration  :  ETS 300-019-2-4 class 4M5

• Features

Gigabit Ethernet  :  10/100/1000-BASE-T
Management Services  :  Mimosa cloud monitoring and management, SNMPv2 & Syslog legacy monitoring, HTTPS, HTML 5 based Web UI
Smart Spectrum Management  :  Active scan monitors/logs ongoing RF interference across channels (no service impact)
                                                     Dynamic auto-optimization of channel and bandwidth use
Security  :  WPA2 + Mimosa 802.1x Client**
QoS  :  Supports 4 pre-configured QoS levels

• Regulatory + Compliance

Approvals :   FCC Part 15.407 and Part 90Y, IC RSS210,
                     CE, ETSI 301 893/302 502
RoHS Compliance   : Yes
Safety  :  UL/EC/EN/ 60950-1 + CSA-22.2
