KB100803

• از عملکرد نگهبان سخت افزار، بازیابی خودکار تجهیزات غیرعادی، بدون تعمیر و نگهداری پشتیبانی کنید.

دستگاه محافظ TVS ویژه برای بهبود پایداری محصول در محیط سخت اتخاذ شده است.

---

---

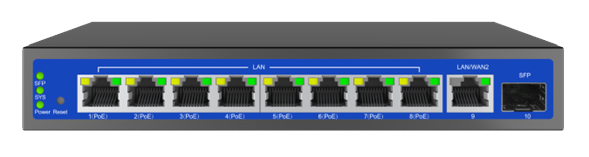

• product model  :  DR-1008GP
• CPU  :  MT7981B+2×MT7531AE+GPY211
• FLASH  :  SPI NOR 8MB + NAND 128MB
• DDR3  :  512MB
• Interface :  1*10 / 100 / 1000M adaptive SFP port,

                  8*0 / 100 / 1000M LAN Port, supports POE output, 48 V ~ 802.3af/at,

                  the maximum power consumption of a single port is 30W

                  1*10 / 100 / 1000M WAN port

                  the maximum power consumption of a single port is 30W

                  810 / 100 / 1000M adaptive LAN ports, support POE output, 48 V ~ 802.3af/at, the maximum power consumption of a single port is 30W

• Reset button  :  Reset button (Press it for 6-10 seconds to restore the default factory configuration)
•  Indicator light  :  PWR (green light): the power green always bright, not the power off.

                                       SYS (green): The system starts green; the fault is detected and the start is not off.

• Network indicator light  :  The yellow light on the left side of POE has normal output; the yellow light is abnormal; off, no PoE output.

                                                     The green light on the right side of the network port is always on 10 / 100 / 1000 / 2500Mbps; flashing, with data, off, not                                                                 connected.

• DC input  :  DC 52V/1.85A

• Max Consumption   : <8W (excluding PoE output)
• Size  :  190mm*97.5mm*29mm.5
• Weight  :  0.46kg
• Protection grade  :  Contact: ± 6KV, air: ± 8KV
• Wave surge level  : Common mode ± 2KV and difference mode ± 1KV

• EMC  :  Satisfied Class A
• Working environment  :  Operating temperature: -20℃ ~ + 55℃; Storage temperature: -40℃ ~ + 70℃; Humidity: 5%~95% (no condensation)
